A cold engine does not vaporize fuel well. Gasoline will ony burn when it is vaporized. Therefore, you have to put in a larger amount of raw gas then normal, so enough of it will vaporize. Then it will be able to burn and start the engine.

Mikuni Carburetors do this with a Mixture Enrichement Circuit. This circuit takes fuel from the float bowl, air from the front of the Carburetor and funnels it into the front of the Carburetor. For this Mixture Enrichment Circuit to work the Throttle Slide MUST be closed. This allows for a high vacuum to be present. If you open the throttle it lessens the vacuum considerably. This stops the Mixture Enrichement Circuit from working. The Mixture Enrichement Circuit is activated by a plunger.

Most Mixture Enrichement Circuits plungers are activated in one of three ways.

  1. Plunger Knob
  2. Plunger Lever
  3. Plunger Cable


Click the Picture for the Full Size.
Plunger Knob Type
Click the Picture for the Full Size.
Plunger Lever Type
Click the Picture for the Full Size.
Plunger Cable Type

The plunger is raised. Vacuum from the front of the Carburetor pulls air, from the rear of the Carburetor. It mixes that air with fuel coming through a small, pressed in, jet in the bottom of the Carburetor Float Bowl. The fuel goes from that jet through a passage in the Float Bowl. Flows up a tube and out the Plunger orifice. Then the fuel/air mixture goes through a passage to the front of the Carburetor and into the engine.


Click the Picture for the Full Size.
Starter Jet Intake
Click the Picture for the Full Size.
Starter Jet Outlet


Click the Picture for the Full Size.
Starter Jet Fuel Pipe
Click the Picture for the Full Size.
Starter Jet Fuel Passage


Click the Picture for the Full Size.
Brass Starter Jet
Click the Picture for the Full Size.
Starter Plunger orifice
Click the Picture for the Full Size.
Starter Plunger


Starter Plungers can be found on multi-cylinder engines too.



Other Carburetor Manufacturers use a different way of getting there. If you look closely you will see the Bing uses a cable operated, round piece of metal to do the same thing the plunger does. Cover and uncover the Starter Jet Port. One way or another they all end up at the same place. We have to have more gas going in to get a cold engine started.

Click the Picture for the Full Size.

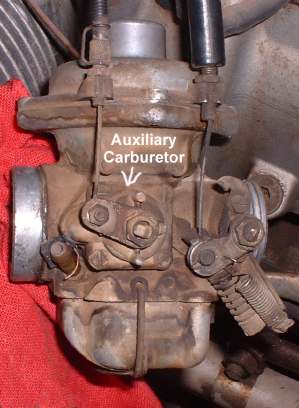

Bing Auxiliary Starter Carburetor
Click the Picture for the Full Size.
Bing Auxiliary Starter Carburetor


Some Scooters have special electric Starter Plungers. Most are on Scooters. In the last 30 years I have had about, oh, maybe four or five scooters come in the shop. I am in the State of Idaho, USA. In some big cities or overseas they seem to be quite popular but not here. To learn more about them check your Scooter's shop manual.

Click the Picture for the Full Size.
Mixture Enrichener
Thermowax Type
Click the Picture for the Full Size.
Mixture Enrichener
Bimetal Type
