Constant Velocity Carburetors


If you whack the throttles wide open on a regular set of Slide Carburetors, from an idle, the engine will die. There is a reason for this. When you open the throttle side too fast the vacuum drops to, basically, nothing. With no vacuum, no gas gets sucked through the carburetor jets. With no gas to burn, the engine dies.

If the throttle is partially open, when you whack it to all the way open, the engine will not die but it will stumble a lot until the vacuum rises in the carburetor's venturi, sucking in more gas. To cure this dying and stumbling carburetor manufacturers invented the Constant Velocity, also known as Constant Depression, Carburetor.

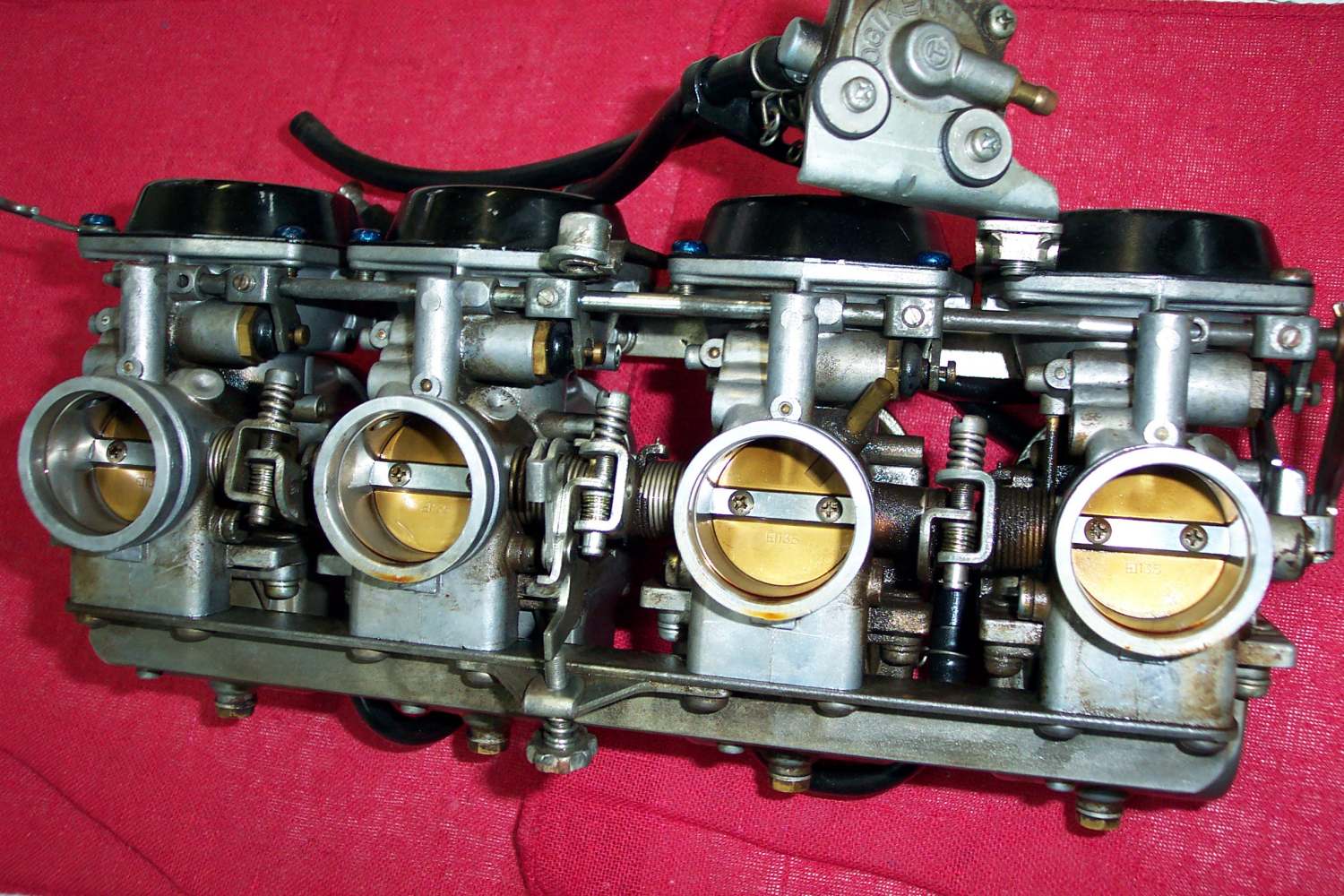

Now when you vigorously open the throttles from an idle, you don't have to worry about the engine dying. This is because the Throttle Cable is not even attached to the Throttle Slide. If you whack that throttle open the Constant Velocity Carburetor or CV Carburetor itself controls the engine's acceleration. The throttle cable connects to a Throttle Plate in the Carburetor throat. As it opens it tells the engine to accelerate but the engine vacuum controls how fast the engine actually does accelerate.

It does this by channeling vacuum pressure, from the engine side of the carburetor, through passages in the Throttle Slide to an area above the Throttle Slide, sucking it up and open. Atmospheric Air Pressure, from the Air Cleaner side of the Carburetor, is channeled to an area below the Throttle Piston or Diaphragm. The Atmospheric Air fills the void made by the Throttle Slide Piston or Diaphragm as it opens. This helps the Throttle Slide to open smoothly. When the throttle is closed the Throttle Slide drops down and shuts off the fuel going to the engine. Sometimes with a spring assist.

CV Carburetors come in two flavors. Piston slide and Diaphragm Slide.

Click the Picture for the Full Size.
Piston Constant Velocity Carburetor
Vacuum Air Flow
Click the Picture for the Full Size.
Piston Constant Velocity Carburetor


Piston Constant Velocity Carburetors have a solid piston and slide. The piston is sealed with a Labyrinth Seal. The engine vacuum raises the slide smoothly as engine vacuum increases. When you close the throttle the slide closes from it's own weight. The throttle cut away is positioned by a peg in the carburetor body that fits into a groove in the piston throttle slide. I put a wire through the Atmospheric Air Intake Ports so you can see where the ports go.

Click the Picture for the Full Size.
Labyrinth Piston Seal
Click the Picture for the Full Size.
Vacuum Intake
Top of Slide
Click the Picture for the Full Size.
Vacuum Intake
Bottom of Slide


Click the Picture for the Full Size.
Atmospheric Air Intake
Click the Picture for the Full Size.
Atmospheric Air Intake

The Diaphragm Constant Velocity Carburetor uses a Rubber Diaphragm to raise the Throttle Slide. The edge of the Diaphragm fits into a groove in the carburetor body to seal in the vacuum. When you shut down the throttle there is a light spring that closes the throttle slide. The Throttle Cut away is positioned by a rubber peg cast into the Diaphragm that fits into the Carburetor body. Again, I put a wire through the Atmospheric Air Intake Ports so you can see where the ports go.

Click the Picture for the Full Size.
Diaphragm Constant Velocity Carburetor
Vacuum Air Flow
Click the Picture for the Full Size.
Diaphragm Constant Velocity Carburetor


Click the Picture for the Full Size.
Diaphragm Top Seal
Notice the Spring
Click the Picture for the Full Size.
Diaphragm Vacuum Intake
Top of Slide
Click the Picture for the Full Size.
Diaphragm Vacuum Intake
Bottom of Slide


Click the Picture for the Full Size.
Atmospheric Air Intake
Click the Picture for the Full Size.
Atmospheric Air Intake


Some Honda CV Carburetors use a Diaphragm and a Plunger to control the vacuum. A bit different but still, I think, a Diaphragm CV Carburetor.



When you adjust a multi CV Carburetor set up correctly, it should smoothly Rev Up. Very smoothly, with no stumbling whatsoever, when you go from an idle to full throttle, no matter how hard you open the throttles.
