MOTORCYCLE REED VALVES

Reed Valve


Reed Valves are simply a one way valve. They let air or liquid pass one way and not the other. We usually see them in the intake track of a two stroke engine. When the piston of a two stroke engine goes down it compresses the fuel mixture in the crankcase and this can push some of the mixture back out the carburetor. A Reed Valve in the carb manifold will let the fuel mixture in but not out. This allows bigger ports be used.

Reed Valves can be found on Four Stroke engines too, such as the 1982 XR500 Honda. This was to help the engine carburetion. I guess it was running too rich. I read somewhere that they call this "Intake Reversion". Supposedly the theory was that because of big cam lifts and long cam timing duration, the fuel mixture got too rich. Seems it got blown back out through the carburetor and then sucked in again. Going through the carburetor twice makes the mixture too rich. I'm not to sure how much of a problem this actually was but I guess Honda figured a Reed Valve would help.

Click the Picture for the Full Size.

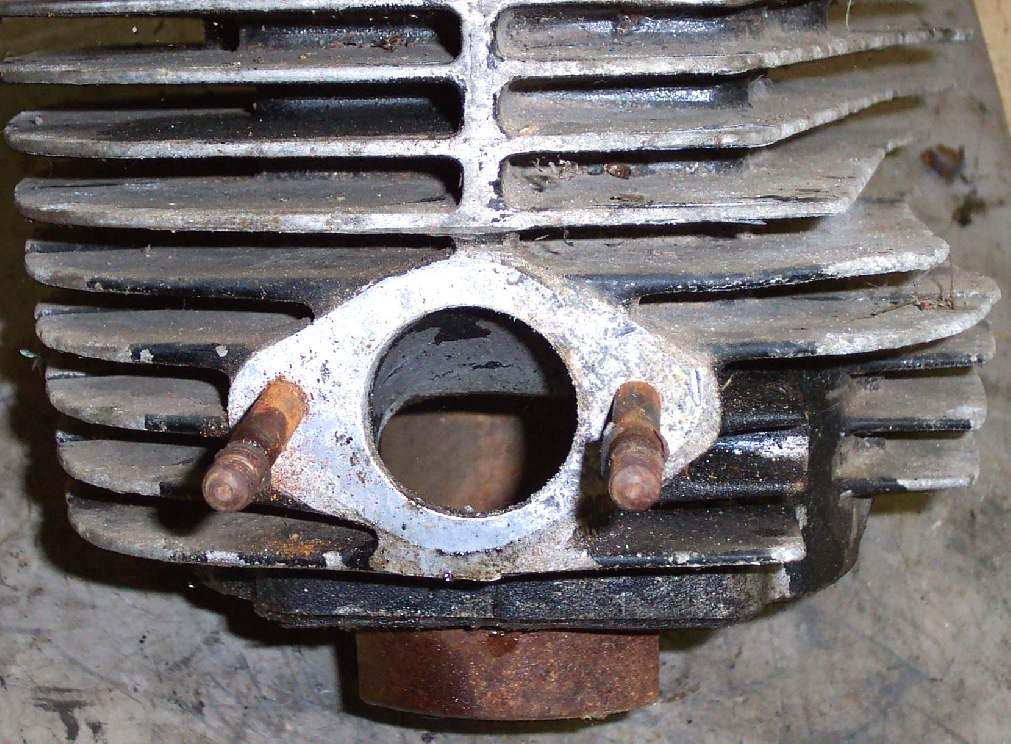

Cylinder with no Reeds.
Click the Picture for the Full Size.
Reed Valve Cylinder.

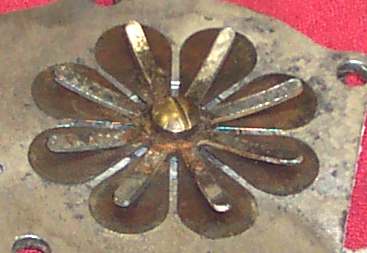

Reed PetalParts of a Reed Valve.Most Reed Valves will have four petals but I've seen as few as one (you've got to have at least one, well duh!) and as many as eight. Technically, I suppose there's no limit to the number. Motorcycle engines usually have four or six petals, outboard engines can have eight and small chain saws one. The stock ones are usually made out of steel. High performance ones can be made out of plastic or who knows what. They also have a curved metal plate screwed to the reed cage that limits or stops how far they can open. This prevents the reed from bending too much and breaking off.

If a reed is broken or stuck closed the bike will be very hard to start if it will start at all. They are normally quite reliable... at least I haven't run across very many broken ones.

Fuel Reed ValveSome fuel pumps and carburetors also use what is essentially a Reed Valve to control the fuel through the pump or carb. This reed is usually a rubber one and very thin. Pumper carbs also used these type of valves. You probably will not run into this type of Reed Valve on motorcycle engines, but you never know !
